Three-Roller Idler Set

Stable Load Support Solution for Belt Conveyor Carrying Sections

Product Overview

The three-roller idler set is one of the most commonly used carrying idler configurations in belt Conveyor Systems. Designed to support the Conveyor Belt and transported material on the carrying side, this idler set consists of three individual rollers arranged on a rigid steel frame. By forming a stable and efficient belt support structure, three-roller idler sets help maintain belt shape, distribute load evenly, and ensure smooth conveyor operation.

Unlike specialized idlers such as impact idlers or self-aligning idlers, the three-roller idler set focuses on providing reliable, consistent load-bearing support under continuous operating conditions. Its simple yet effective structure makes it a standard choice for a wide range of industries, including mining, cement, power generation, ports, and bulk material handling facilities.

What Is a Three-Roller Idler Set

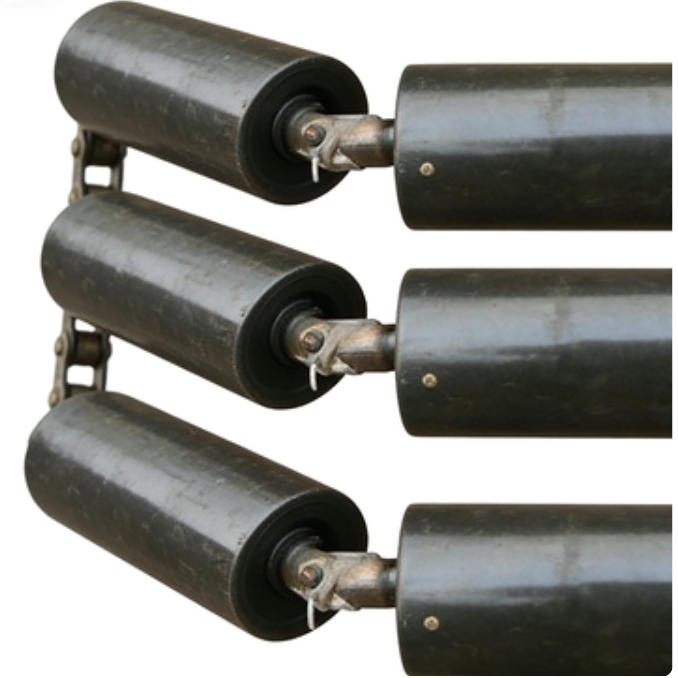

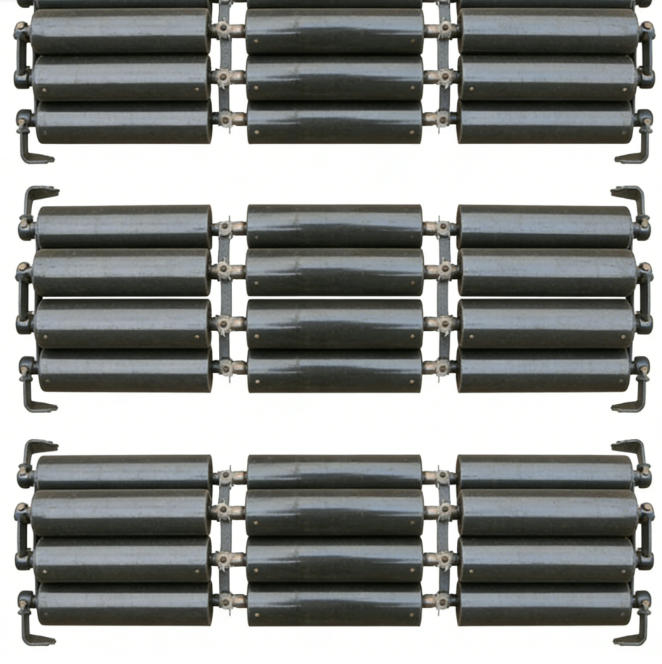

A three-roller idler set is an idler assembly composed of one center roller and two side rollers mounted on a common frame. The side rollers are installed at an upward angle relative to the center roller, allowing the conveyor belt to assume a controlled trough-like profile while maintaining mechanical simplicity.

This configuration improves belt stability, increases material carrying capacity, and reduces belt sag between idler stations. The three-roller idler set is widely used as a foundational component in conveyor systems where stable belt support and long service life are essential.


Role of Three-Roller Idlers in Conveyor Systems

In any belt conveyor system, the carrying side must support both the belt weight and the weight of the conveyed material. Without adequate support, the belt may deform, vibrate, or experience uneven stress distribution.

Three-roller idler sets provide uniform load support across the belt width, reducing localized stress on the belt carcass. By maintaining consistent belt geometry, they help prevent premature belt wear, improve conveying efficiency, and reduce overall system energy consumption.

Structural Design and Component Description

Center Roller

The center roller is positioned horizontally and supports the central portion of the belt where material load is typically highest. It is designed for high load capacity and smooth rotation.

Side Rollers

The two side rollers are mounted symmetrically on either side of the center roller. Their angled orientation supports the belt edges and helps contain material within the belt profile.

Idler Frame

The idler frame is fabricated from high-strength steel and provides a rigid structure to maintain roller alignment. Precision welding and reinforced design ensure durability under continuous operation.

Technical Parameters and Specifications

Three-roller idler sets can be manufactured in a wide range of specifications to suit different conveyor designs.

  • Belt Width Compatibility: 400 mm – 2400 mm

  • Roller Diameter: 89 mm / 108 mm / 133 mm / 159 mm / 194 mm

  • Roller Length: Customized according to belt width

  • Side Roller Angle: 20° / 30° / 35° / 45° (project dependent)

  • Frame Material: Carbon steel or reinforced structural steel

  • Surface Treatment: Powder coating / galvanizing

  • Bearing Type: Fully sealed deep groove ball bearings

  • Operating Temperature: -30°C to +80°C

  • Maximum Belt Speed: Up to 6.5 m/s

All parameters can be tailored to meet specific operational requirements.

Variations of Three-Roller Idler Sets

Standard Three-Roller Idler Set

Used for general bulk material conveying under normal operating conditions.

Heavy-Duty Three-Roller Idler Set

Designed for high-load applications such as mining and quarrying.

Rubber-Coated Three-Roller Idler

Reduces noise and improves belt grip in dusty or wet environments.

Corrosion-Resistant Three-Roller Idler

Suitable for coastal, chemical, or high-humidity environments.


Materials and Manufacturing Quality

Manufacturing quality directly affects idler performance and service life. Roller shells are produced from precision steel tubing with strict control over concentricity and wall thickness. Shafts are machined from high-strength steel to ensure accurate bearing fit and reliable load support.

Bearings are sealed and pre-lubricated to prevent contamination by dust or moisture. The idler frame is produced using reinforced steel sections and precision welding to withstand continuous dynamic loads.

Application Scenarios

Three-roller idler sets are used across a wide range of industries.

Mining and Quarrying

Used in ore, coal, and aggregate conveyors.

Cement Industry

Installed in limestone, raw meal, and clinker handling systems.

Power Generation

Applied in coal conveying and auxiliary Material Handling Systems.

Ports and Bulk Terminals

Used in ship loaders, unloaders, and stockyard conveyors.

Metallurgy and Steel Plants

Installed in raw material transport and sinter conveying lines.

Performance Advantages

Three-roller idler sets provide consistent belt support and reliable operation. Their balanced design reduces belt sag, minimizes rolling resistance, and helps maintain stable belt motion.

Their simple structure results in low failure rates and easy maintenance, making them a cost-effective solution for long-term conveyor operation.

Installation Guidelines

Correct installation is essential for optimal performance.

Three-roller idler sets should be installed at evenly spaced intervals along the carrying side of the conveyor. The idler frame must be aligned with the conveyor centerline and securely fixed to the supporting structure.

After installation, the conveyor should be run without load to verify smooth roller rotation and proper belt tracking.

Operating Instructions

During operation, ensure materials are fed evenly across the belt width to avoid unbalanced loading. Avoid overloading the conveyor, as excessive load can accelerate roller wear and reduce service life.

Regular observation during operation helps identify abnormal noise, vibration, or resistance at an early stage.

Maintenance and Service Life

Routine maintenance significantly extends the service life of three-roller idler sets.

  • Inspect roller rotation and surface condition

  • Check bearing noise and temperature

  • Clean accumulated material around idlers

  • Replace damaged rollers promptly

With proper maintenance, three-roller idler sets can operate reliably for many years.

Common Problems and Solutions

Uneven Roller Wear
Often caused by uneven material loading or belt misalignment.

Belt Sag Between Idlers
May indicate insufficient idler spacing or undersized rollers.

Bearing Failure
Usually caused by contamination, poor sealing, or overload conditions.

How to Select the Right Three-Roller Idler Set

Selection should consider belt width, belt speed, material type, load capacity, and operating environment. For abrasive or heavy materials, reinforced frames and larger roller diameters are recommended.

Professional technical consultation helps ensure optimal selection.

Customization Options

We provide comprehensive customization services, including:

  • Roller diameter and length

  • Side roller angle configuration

  • Frame reinforcement level

  • Anti-corrosion surface treatment

  • OEM branding and export packaging

Customized three-roller idler sets ensure compatibility with specific conveyor systems.

Quality Control and Testing

Each three-roller idler set undergoes strict quality inspection, including dimensional checks, roller balance testing, bearing performance testing, and rotation resistance measurement. This ensures consistent quality and reliable operation.

Packaging and Transportation

Products are packed using reinforced export-grade packaging to protect against damage during transportation. Customized packaging solutions are available for international shipments.

Frequently Asked Questions (FAQ)

What is the main function of a three-roller idler set?
To support the conveyor belt and material on the carrying side.

How is it different from a trough idler?
A three-roller idler refers to the structural configuration, while trough idler emphasizes belt shape. In practice, many systems use three-roller idlers to form a trough.

Can three-roller idlers be customized?
Yes, dimensions, angles, and materials can be customized.

How often should three-roller idlers be replaced?
Replacement depends on operating conditions and maintenance practices.

Why Choose Our Three-Roller Idler Sets

As a professional conveyor equipment manufacturer, we offer three-roller idler sets with stable performance, reliable quality, and long service life. Our products are designed to meet the needs of modern bulk material handling systems and are supported by professional technical expertise.

Conclusion

Three-roller idler sets are essential components of belt conveyor systems, providing stable load support, efficient belt shaping, and reliable long-term operation. Their simple structure, strong load-bearing capability, and wide application range make them a preferred choice for carrying-side conveyor support. Choosing high-quality three-roller idler sets helps improve conveyor efficiency, reduce maintenance costs, and extend belt service life.
