Reversible Self-Aligning Friction Idler Set

    Reversible Self-Aligning Friction Idler Set

    Reversible Self-Aligning Friction Idler SetActive Belt Tracking Solution for Bi-Directional Conveyor SystemsProduct OverviewThe reversible self-aligning friction idler set is an advanced conveyor idler solution designed to actively correct belt misalignment through controlled frictional force while supporting bidirectional belt operation. Unlike conventional self-aligning idlers that rely mainly on frame rotation or roller geometry, friction-based training idlers use specially designed friction rollers to generate corrective forces directly on the conveyor belt surface.In conveyor systems wher...
  • chia sẻ：
    • Liên hệ với chúng tôi Yêu cầu trực tuyến
  • Thư：baxj0312@163.com

reversible self-aligning friction idler Set

Active Belt Tracking Solution for Bi-Directional Conveyor Systems

Product Overview

The reversible self-aligning friction idler set is an advanced conveyor idler solution designed to actively correct belt misalignment through controlled frictional force while supporting bidirectional belt operation. Unlike conventional self-aligning idlers that rely mainly on frame rotation or roller geometry, friction-based training idlers use specially designed friction rollers to generate corrective forces directly on the Conveyor Belt surface.

In conveyor systems where belt deviation occurs frequently due to changing loads, material characteristics, wind influence, or reversible operation, traditional idlers may respond slowly or inconsistently. The reversible self-aligning friction idler set addresses these challenges by providing fast, stable, and repeatable belt tracking performance in both forward and reverse directions.

This type of idler is widely used in modern bulk Material Handling Systems that demand high reliability, minimal downtime, and precise belt control.

What Is a Reversible Self-Aligning Friction Idler

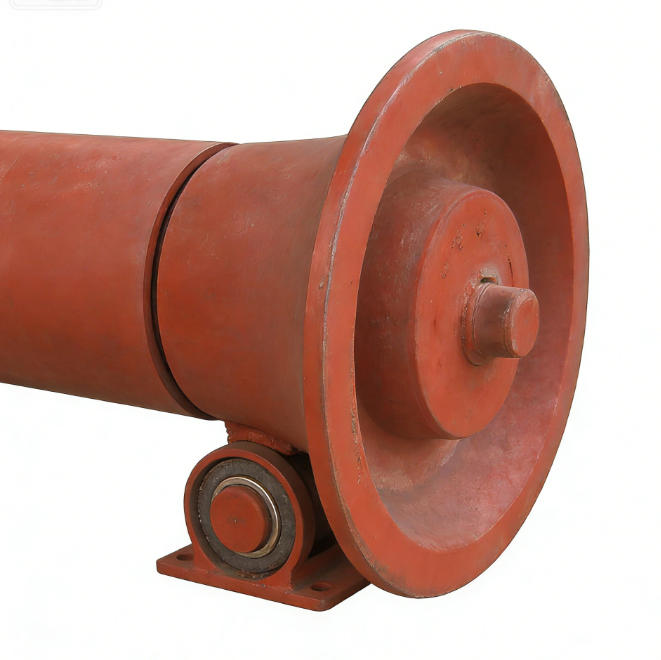

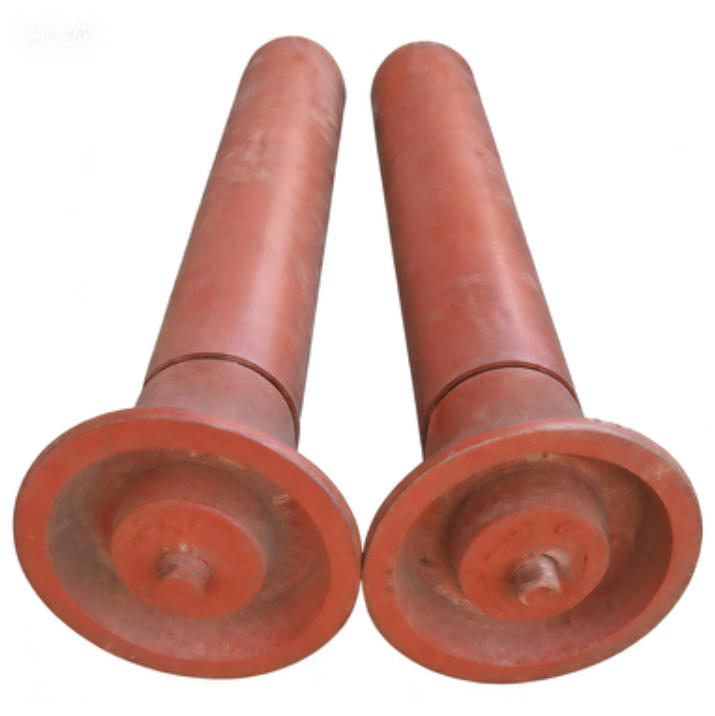

A reversible self-aligning friction idler set is a specialized training idler assembly that combines a pivoting idler frame with friction-enhanced rollers. These rollers are typically rubber-coated or fitted with high-friction surfaces that interact directly with the conveyor belt.

When the belt begins to deviate from the centerline, the friction rollers generate a lateral force proportional to the degree of misalignment. This force actively guides the belt back toward the correct running position. Because the structure is symmetrical, the idler functions effectively in both belt travel directions, making it ideal for reversible conveyor systems.

Why Friction-Based Belt Training Is More Responsive

Traditional self-aligning idlers often rely on indirect forces, such as roller taper or frame rotation, to influence belt movement. While effective in many applications, these methods can be less responsive under rapidly changing conditions.

friction training idlers operate differently. By increasing the frictional interaction between the belt and the idler rollers, corrective forces are applied immediately when misalignment occurs. This results in faster response, reduced belt edge stress, and improved overall tracking stability.

The reversible self-aligning friction idler set combines this responsiveness with bidirectional functionality, offering a highly adaptable belt tracking solution.


Structural Design and Working Principle

Friction Rollers

The defining feature of this idler set is its friction rollers. These rollers are typically covered with wear-resistant rubber or friction-enhancing materials. The surface is engineered to provide sufficient grip without damaging the belt cover.

Pivoting Training Frame

The idler frame is mounted on a central pivot that allows controlled angular movement. As the belt deviates, friction forces cause the frame to rotate slightly, amplifying the corrective effect.

Reversible Symmetrical Design

The entire assembly is symmetrical along the conveyor centerline. This ensures consistent belt training performance regardless of belt travel direction, a critical requirement for reversible conveyors.

Key Technical Parameters and Specifications

Reversible self-aligning friction idler sets are available in a wide range of configurations.

  • Belt Width Compatibility: 500 mm – 2200 mm

  • Roller Diameter: 89 mm / 108 mm / 133 mm / 159 mm

  • Roller Surface: Rubber-coated / high-friction polymer

  • Frame Material: Heavy-duty carbon steel

  • Surface Treatment: Powder coating / hot-dip galvanizing

  • Bearing Type: Fully sealed deep groove ball bearings

  • Operating Temperature: -30°C to +80°C

  • Belt Speed Compatibility: Up to 6.0 m/s

  • Installation Position: Carrying side or return side (project dependent)

All parameters can be customized to suit specific conveyor designs.

Types of Reversible Self-Aligning Friction Idlers

Carrying-Side Friction Training Idler

Installed on the loaded belt to correct misalignment under material load.

Return-Side Friction Training Idler

Used on the return belt to stabilize tracking without material load.

Heavy-Duty Friction Training Idler

Designed for mining and quarry applications with high belt tension.

Low-Noise Friction Idler

Optimized for enclosed plants and urban industrial environments.

Materials and Manufacturing Quality

High manufacturing quality is essential for friction-based idlers, as surface consistency directly affects belt tracking performance. Roller shells are manufactured from precision steel tubing with strict tolerance control. Friction coatings are applied using controlled bonding processes to ensure uniform thickness and adhesion.

Shafts are made from high-strength steel, while bearings are sealed and pre-lubricated to protect against dust, moisture, and contaminants. The idler frame is fabricated using reinforced steel profiles and precision welding to maintain alignment accuracy over long service periods.


Application Scenarios

Reversible self-aligning friction idler sets are used in conveyor systems where conventional tracking methods are insufficient.

Reversible Conveyor Systems

Stacker-reclaimer conveyors and shuttle conveyors operating in both directions.

Mining and Quarrying

Long-distance conveyors exposed to variable loading conditions.

Ports and Bulk Terminals

Conveyors affected by wind, uneven feeding, and environmental factors.

Power Plants

Coal handling systems with frequent start-stop cycles.

Cement and Aggregate Plants

Conveyors with fluctuating material flow rates.

Advantages of Reversible Self-Aligning Friction Idlers

These idlers provide rapid belt correction and stable tracking under dynamic conditions. Their friction-based mechanism offers immediate response to belt deviation, reducing edge wear and minimizing material spillage.

The reversible design eliminates the need for separate idlers for different running directions, simplifying system layout and maintenance. Overall, friction training idlers help extend belt life, reduce downtime, and improve conveyor efficiency.

Installation Guidelines

Proper installation is critical to achieving effective belt tracking.

Reversible self-aligning friction idlers should be installed at locations where belt deviation is most likely to occur, such as after loading zones, near take-up areas, or before critical transfer points. The idler frame must be aligned accurately with the conveyor centerline.

After installation, the conveyor should be operated under no-load and loaded conditions to observe belt behavior and confirm correct operation.

Operating Instructions

Once installed, the idler operates automatically without manual adjustment. During operation, ensure the belt surface remains clean to maintain consistent friction performance.

Avoid excessive belt contamination with oil or grease, as this may reduce friction and tracking efficiency.

Maintenance and Inspection

Routine maintenance ensures long-term performance.

  • Inspect friction roller surfaces for wear

  • Check bearing rotation and noise

  • Verify free movement of the pivot mechanism

  • Remove accumulated dust and debris

Proper maintenance helps maintain consistent belt training behavior.

Common Problems and Solutions

Reduced Tracking Effectiveness
May be caused by worn friction surfaces or contaminated belt covers.

Excessive Frame Movement
Often due to uneven belt tension or incorrect installation position.

Roller Surface Damage
Typically results from abrasive materials or improper belt cleaning.

How to Select the Right Reversible Self-Aligning Friction Idler

Selection should consider belt width, belt speed, operating direction, belt tension, and environmental conditions. Friction idlers are particularly recommended for conveyors with frequent belt deviation or reversible operation.

Professional engineering support ensures correct selection and optimal performance.

Customization Options

We provide extensive customization services:

  • Roller diameter and friction material

  • Frame structure and reinforcement

  • Anti-corrosion surface treatments

  • OEM branding and export packaging

Customized solutions ensure compatibility with specific conveyor systems.

Quality Control and Testing

Each reversible self-aligning friction idler set undergoes strict inspection, including friction surface testing, roller balance testing, bearing performance testing, and functional belt training simulation. This ensures consistent quality and reliable field performance.

Packaging and Transportation

Products are packed using reinforced export-grade packaging to prevent damage during transportation. Custom labeling and packaging options are available for international shipments.

Frequently Asked Questions (FAQ)

What makes friction idlers different from standard self-aligning idlers?
They use frictional force to actively guide the belt rather than relying only on geometry.

Can they be used on reversible conveyors?
Yes, they are specifically designed for bidirectional operation.

Do friction rollers damage the belt?
No, when properly designed, they reduce belt edge wear.

Is customization available?
Yes, full customization is supported.

Why Choose Our Reversible Self-Aligning Friction Idlers

As a professional conveyor equipment manufacturer, we offer reversible self-aligning friction idlers with reliable quality, precise engineering, and proven field performance. Our products are designed for demanding industrial environments and supported by experienced technical teams.

Conclusion

Reversible self-aligning friction idler sets provide an effective and responsive solution for conveyor belt tracking in complex operating conditions. Their friction-based corrective mechanism, reversible design, and robust construction make them ideal for modern bulk material handling systems. By choosing high-quality friction training idlers, operators can significantly improve belt alignment, reduce maintenance costs, and enhance overall conveyor reliability.
