Rubber Lagged Conveyor Drum

    Rubber Lagged Conveyor Drum

    Product OverviewThe rubber lagged conveyor drum is a key power transmission component in belt conveyor systems, designed to improve friction, enhance belt traction, and ensure stable material conveying under various operating conditions. By applying a rubber coating to the drum surface, the contact friction between the drum and conveyor belt is significantly increased, effectively reducing belt slippage and improving overall conveying efficiency.Rubber lagged drums are widely used in mining, cement plants, ports, power stations, metallurgy, chemical processing, and other industrial material ha...
  • chia sẻ：
    • Liên hệ với chúng tôi Yêu cầu trực tuyến
  • Thư：baxj0312@163.com

Product Overview

The rubber lagged conveyor drum is a key power transmission component in belt Conveyor Systems, designed to improve friction, enhance belt traction, and ensure stable material conveying under various operating conditions. By applying a rubber coating to the drum surface, the contact friction between the drum and Conveyor Belt is significantly increased, effectively reducing belt slippage and improving overall conveying efficiency.

Rubber lagged drums are widely used in mining, cement plants, ports, power stations, metallurgy, chemical processing, and other industrial Material Handling Systems where heavy loads, long conveying distances, or challenging environments require reliable and consistent belt drive performance. Their robust structure, flexible configuration, and long service life make them an essential component in modern conveyor systems.

Functional Role of the Rubber Lagged Drum

In a conveyor system, the drum serves as the primary interface between mechanical drive components and the conveyor belt. The rubber lagged conveyor drum enhances this interface by providing higher friction compared to smooth steel drums, allowing effective power transmission even under wet, dusty, or high-load conditions.

By increasing the friction coefficient, rubber lagging helps maintain proper belt tension, reduce belt misalignment, and minimize energy loss during operation. This makes rubber lagged drums particularly suitable for demanding industrial applications.


Types of Drum Surface and Rubber Lagging

To adapt to different process requirements and operating environments, rubber lagged conveyor drums are available with multiple surface and lagging configurations.

Smooth Steel Drum

A smooth steel drum is suitable for light-duty applications or environments where belt traction requirements are low. However, in many industrial scenarios, rubber lagging is preferred for enhanced performance.

Rubber Lagged Drum

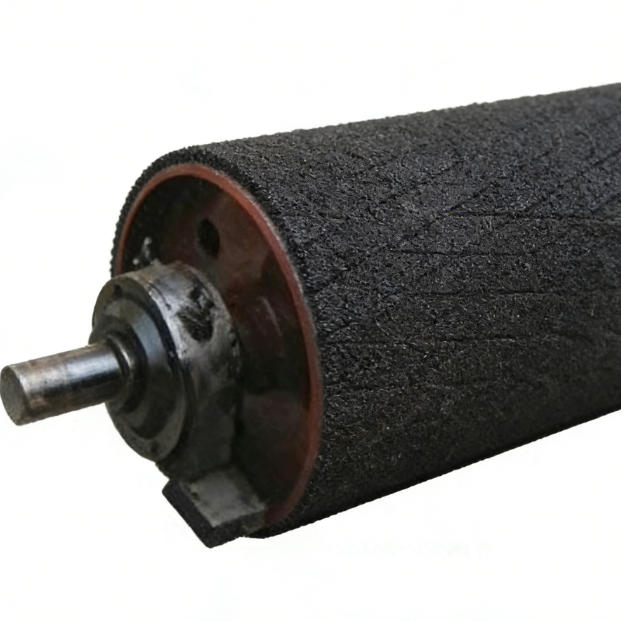

Rubber lagging is applied to the drum surface to improve traction and protect both the drum and the belt from excessive wear.

Rubber lagging surface patterns include:

  • Smooth Rubber Lagging
    Provides uniform friction and is suitable for general-purpose conveying systems.

  • Chevron (Herringbone) Rubber Lagging
    Designed to improve grip and facilitate water drainage, ideal for wet or humid environments.

  • Diamond Rubber Lagging

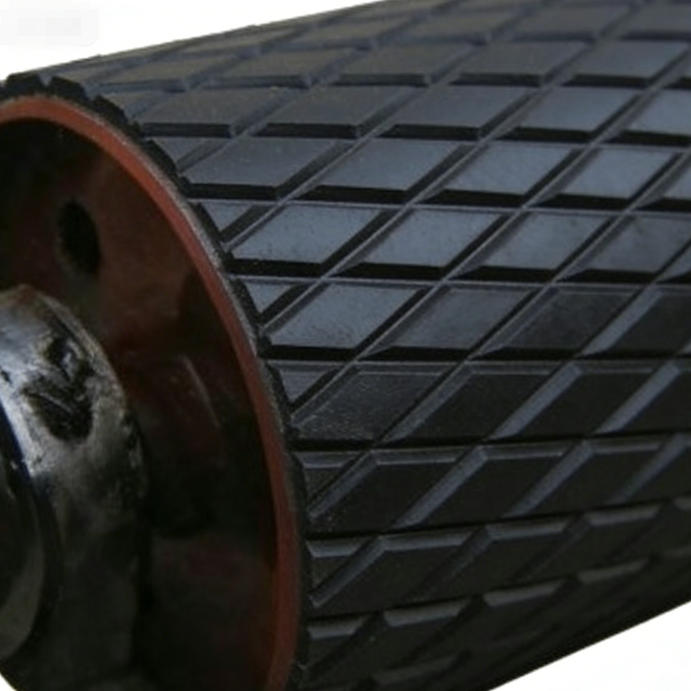

    Offers multidirectional traction and superior grip, commonly used in heavy-duty and high-torque applications.

Each lagging pattern is selected based on belt speed, load conditions, material characteristics, and environmental factors.

Structural Design and Construction

Rubber lagged conveyor drums are manufactured with a focus on strength, balance, and long-term reliability.

Drum Shell

The drum shell is produced using high-quality steel plates and precision welding techniques. The welded structure ensures uniform wall thickness, excellent load-bearing capacity, and resistance to deformation during long-term operation.

Drum Shaft

The shaft is manufactured from 45# carbon steel, known for its excellent tensile strength, torsional resistance, and fatigue performance. This material ensures stable torque transmission even under heavy belt tension and continuous operation.

Bearing Housing

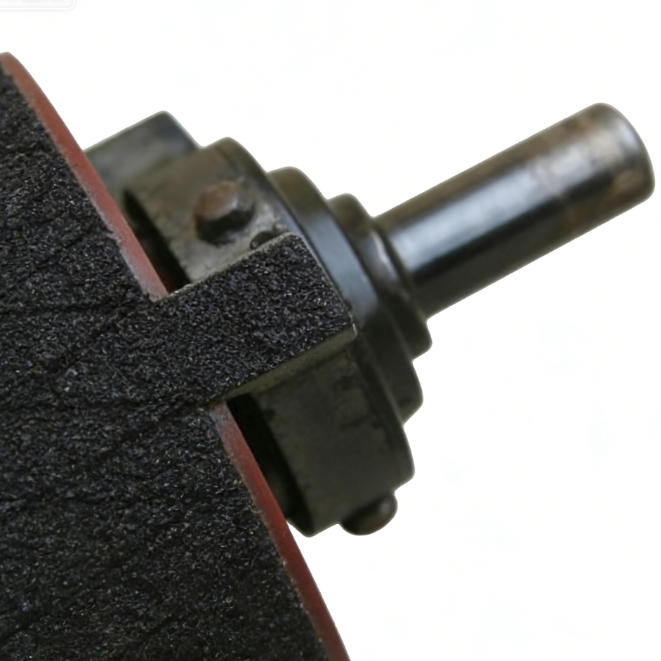

All drums are equipped with an integrated bearing housing design, which improves alignment accuracy and reduces mechanical stress. Bearing housings are available in cast iron or cast steel, allowing flexible selection based on load and application requirements.


Bearing System and Lubrication

The bearing system is a critical factor affecting the service life of rubber lagged conveyor drums. High-quality rolling bearings are installed within the integrated bearing housing and lubricated with industrial-grade grease.

This grease lubrication method effectively reduces friction, prevents overheating, and protects bearings from dust, moisture, and contaminants. Under normal operating conditions, the rubber lagged conveyor drum can achieve 3–5 years of maintenance-free operation, significantly reducing maintenance costs and downtime.

Technical Parameters and Specifications

Rubber lagged conveyor drums are available in a wide range of specifications to suit different conveyor designs.

  • Drum Diameter: 250 mm – 1200 mm

  • Drum Length: Customized according to belt width

  • Belt Width Compatibility: 400 mm – 2400 mm

  • Shaft Material: 45# carbon steel

  • Shell Construction: Welded steel structure

  • Bearing Housing: Integrated type

  • Bearing Housing Material: Cast iron / Cast steel

  • Lubrication Method: Grease lubrication

  • Surface Options: Smooth / Rubber lagged

  • Lagging Patterns: Smooth, chevron, diamond

  • Operating Temperature: -25°C to +80°C

Custom specifications are available upon request.

Performance Advantages

Rubber lagged conveyor drums offer superior traction and stable belt drive performance. The rubber surface reduces belt slippage, improves power transmission efficiency, and protects the belt from excessive wear.

The integrated bearing housing and high-strength shaft design ensure smooth rotation, low vibration, and reliable operation even under heavy-duty conditions.


Application Scenarios

Mining and Quarrying

Used in primary drive, secondary drive, and tensioning positions on heavy-duty conveyors.

Cement and Building Materials

Applied in clinker transport, raw material handling, and finished product conveying systems.

Ports and Bulk Material Handling

Ideal for ship loaders, unloaders, stackers, and reclaimers.

Power Plants

Commonly used in coal handling and ash conveying systems.

Metallurgy and Chemical Industry

Suitable for harsh environments with dust, moisture, and fluctuating loads.

Installation Guidelines

Correct installation is essential for optimal performance. The drum shaft must be aligned precisely with the conveyor centerline. Bearing housings should be mounted securely to prevent axial or radial movement.

Rubber lagged drums require proper belt tension to ensure sufficient friction without causing excessive wear on the belt or lagging surface.

Operating Instructions

Before startup, inspect bearing lubrication, drum alignment, and belt condition. During operation, monitor noise, vibration, and temperature. Avoid sudden overloads or operation beyond rated design parameters.

Under normal working conditions, the rubber lagged conveyor drum operates automatically without the need for frequent adjustment.

Maintenance and Service Life

Thanks to the integrated bearing housing and grease lubrication system, maintenance requirements are minimal. Periodic inspections are recommended to check lagging wear, bearing condition, and shaft alignment.

With proper selection, installation, and operation, the service life can reach 3–5 years without major maintenance.

Common Problems and Troubleshooting

Belt Slippage
Often caused by worn rubber lagging or insufficient belt tension.

Abnormal Noise or Vibration
May indicate bearing wear, misalignment, or uneven loading.

Uneven Rubber Lagging Wear
Usually caused by belt misalignment or improper installation.

Selection Guide

When selecting a rubber lagged conveyor drum, consider belt width, conveyor length, load conditions, material type, and operating environment. Lagging pattern and bearing housing material should be selected based on friction requirements and load intensity.

Professional selection ensures optimal performance and extended service life.

Customization Options

We provide comprehensive customization services, including:

  • Drum diameter and length

  • Rubber lagging material and thickness

  • Lagging pattern (smooth, chevron, diamond)

  • Shaft size and reinforcement

  • Bearing housing material and sealing design

  • Surface treatment and corrosion protection

OEM and private-label services are available.

Quality Control and Testing

Each rubber lagged conveyor drum undergoes strict quality control procedures, including dimensional inspection, dynamic balance testing, bearing performance testing, and lagging adhesion inspection. These processes ensure consistent quality and reliable long-term performance.

Frequently Asked Questions (FAQ)

What is the main advantage of a rubber lagged drum?
It provides higher friction and better belt traction compared to smooth steel drums.

Which lagging pattern should I choose?
Chevron or diamond lagging is recommended for wet or heavy-duty conditions.

How long is the maintenance cycle?
Under normal conditions, up to 3–5 years maintenance-free.

Can specifications be customized?
Yes, full customization is available.

Why Choose Our Rubber Lagged Conveyor Drums

As an experienced conveyor component manufacturer, we supply rubber lagged conveyor drums with reliable structure, flexible selection, and proven durability. Our products are designed to meet international standards and demanding industrial requirements.

Conclusion

The rubber lagged conveyor drum is a critical component for ensuring reliable power transmission and stable belt operation in industrial conveyor systems. With multiple lagging options, robust structural design, and long service life, it provides an efficient and dependable solution for a wide range of material handling applications.
